Which machines are used to spray mortar and plaster?

ESTonetex spraying machines pump and spray mortars, dry and pre-mixed renders and bagged plasters onto walls, ceilings, facades and floors, and disassemble quickly into three parts for transport and cleaning. The category groups 8 items:

  • EST-SIRIUS PLUS 230V: single-phase 230 V spraying machine, 5.5 kW nominal power (4 kW motor) and adjustable flow from 2 to 20 l/min for aggregates up to 4 mm.

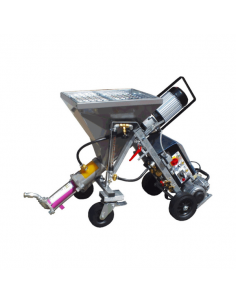

  • EST-SIRIUS PLUS 400V: three-phase 400 V spraying machine, 6.8 kW nominal power (5.5 kW motor), flow from 7 to 35 l/min for aggregates up to 4 mm and EASY CLEAN system.

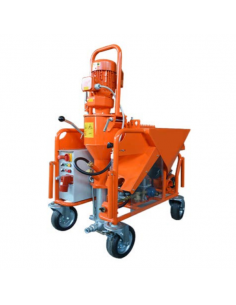

  • EST-70 400V: three-phase 400 V, 7.9 kW spraying machine, adjustable flow from 7 to 35 l/min for aggregates up to 4 mm.
  • EST Mortar Sprayer: spray gun with an adjustable 5 L hopper and 4 to 8 mm metal nozzles, for paints, stucco, thin-layer mortars, textured coatings and stone-effect pastes.
  • Petrol Generator AY-19000 V: single-phase 230 V petrol generator, up to 19 kVA / 15 kW, designed for 230 V spraying machines.

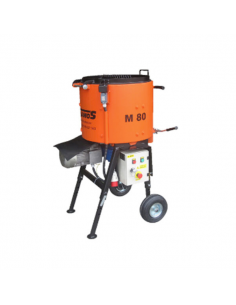

  • Planetary Mixer: planetary mixer with 70 L of usable capacity for mortars and concrete with aggregates up to 10 mm.

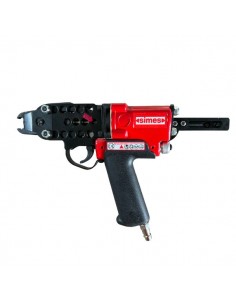

  • Pneumatic Stapler and Manual Stapler: to fix fiberglass meshes, expanded metal and wire meshes in theming work.

Frequently asked questions

What is the difference between the EST-SIRIUS PLUS 230V, the 400V and the EST-70?

The EST-SIRIUS PLUS 230V is single-phase (230 V) and sprays 2 to 20 l/min; the EST-SIRIUS PLUS 400V and the EST-70 400V are three-phase (400 V) and spray 7 to 35 l/min. All three accept aggregates up to 4 mm.

Which materials can be sprayed?

According to the catalog, mortars, dry and pre-mixed renders and bagged plasters. The data of each ESTonetex mortar states whether it is applied by hand or with a spray gun or machine.

What do I need to power the 230 V machine on site?

The Petrol Generator AY-19000 V is designed for 230 V spraying machines such as the EST-SIRIUS PLUS: it is single-phase, with electric start and a 25 L tank.

Where are the worm pumps, the rotors and the spare parts?

In Machine products: D5-2.5 (230 V) and D6-3 (400 V) worm pumps and rotors, lubricant spray, nozzles, water filter and more.
